Functions of the Roland RS-640 Printhead

In the demanding realm of professional wide-format printing, the printhead serves as the critical execution engine. For the widely recognized 64-inch eco-solvent platform, the printhead is tasked with translating digital designs into vibrant, durable physical graphics. Understanding the specific functions of this component reveals how it balances high-speed production with gallery-grade image quality.

Precision Droplet Ejection via Micro Piezoelectric Technology

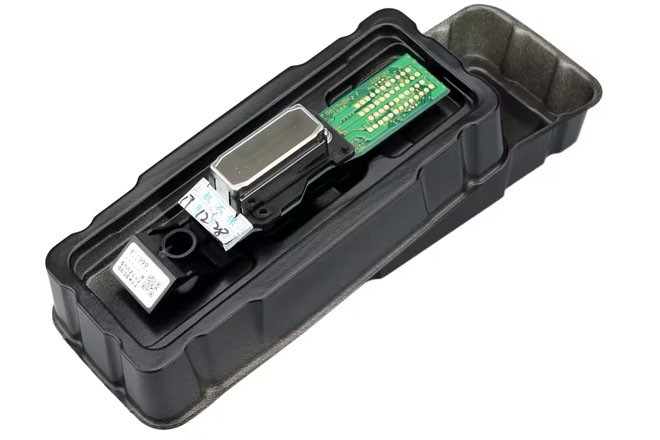

The primary function of the roland RS-640 printhead is to precisely control the ejection of ink droplets using advanced Micro Piezoelectric technology. Unlike thermal systems that rely on heat, this mechanism uses electrical charges to flex piezoelectric elements, mechanically forcing ink out of the nozzles. This cold-printing process allows for variable dot control, generating up to seven different droplet sizes. This function is crucial for rendering smooth color gradations, fine text, and high-density photographic details without sacrificing speed.

Bidirectional Printing and Banding Elimination

To maximize throughput, the printhead operates in a bidirectional manner, depositing ink on both the left and right passes of the carriage. A critical function of this specific printhead architecture is its dual CMYK, mirrored configuration (CMYKKYMC). This strategic nozzle layout is designed to virtually eliminate banding and ensure seamless color consistency during high-speed bidirectional printing. This function guarantees that the final output maintains uniform saturation and rich contrast, regardless of the print mode selected.

Fluid Management and Thermal Integration

The printhead functions as a vital node in the printer's fluid management system. It is engineered to work in tandem with the machine's built-in heaters and drying systems. By precisely regulating the volume and velocity of the eco-solvent ink, the printhead ensures that the droplets land accurately and interact optimally with the heated media. This coordinated function accelerates the curing process, resulting in prints that are fast-drying, scratch-resistant, and ready for immediate finishing or outdoor deployment.
