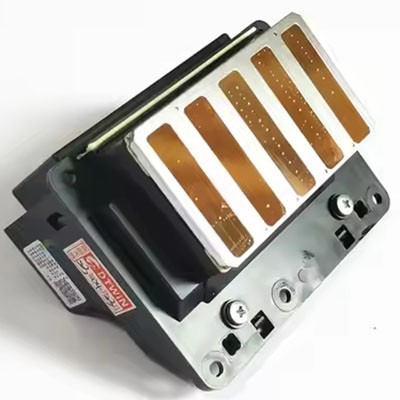

Epson 7890 Print Head Replacement

In the demanding environment of professional wide-format printing, the print head is the most critical and sensitive component of the machine. When an Epson 7890 print head reaches the end of its operational lifecycle or suffers an irreparable failure, executing a replacement is a complex procedure that demands meticulous attention to detail. Understanding the technical intricacies of this process is essential for print service providers aiming to minimize downtime and protect their capital investment.

Recognizing the Need for Replacement

Before initiating a replacement, it is vital to accurately diagnose the issue. The Epson 7890 utilizes advanced MicroPiezo TFP technology, which is highly durable but not immune to wear. Persistent nozzle failures that do not respond to intensive power cleaning cycles, severe ink leakage, or physical damage from media jams are clear indicators of end-of-life. Attempting to force a failing head to work can lead to secondary damage to the printer's mainboard or ink delivery system, making timely replacement a necessary operational decision.

The Complexity of the Disassembly Process

Replacing the Epson 7890 print head is not a simple plug-and-play task. The procedure requires partial disassembly of the printer's chassis and the removal of the carriage assembly. Technicians must carefully navigate a dense network of ribbon cables, ink tubes, and precision sensors. The delicate data ribbon cable, which connects the print head to the mainboard, is particularly vulnerable during this phase. Even a minor tear or improper seating of this cable can result in catastrophic electrical shorts or complete printer failure.

Fluid Management and Post-Installation Protocols

A critical, often overlooked aspect of the replacement process is managing the ink delivery system. Once the old head is removed, the ink lines are exposed, creating a high risk of air entering the system. Technicians must meticulously prime the ink lines and utilize specialized syringes to draw ink through the new head's channels, ensuring that no airlocks remain. Furthermore, the new head must be properly seated and aligned. Following the physical installation, multiple automated cleaning and alignment cycles are required to establish optimal fluid dynamics and ensure perfect drop placement.

Sourcing Authentic Components and Professional Support

Given the high precision of the Epson 7890 print head, the quality of the replacement component is paramount. The market is flooded with unverified, third-party heads that often suffer from inconsistent nozzle alignment and premature failure. To guarantee gallery-grade output and long-term reliability, operators must source authentic, OEM-specification components. For many print facilities, engaging certified technicians or authorized service centers for this procedure is the most prudent strategy. Their specialized tools and expertise not only ensure a flawless installation but also protect the printer's warranty and extend its overall operational lifespan.
