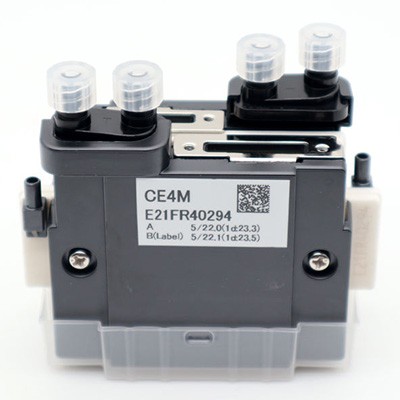

Toshiba CE4M Printhead: Precision & Speed in Industrial Inkjet

The Toshiba CE4M printhead has established itself as a versatile workhorse in the industrial inkjet ecosystem, bridging the gap between high-resolution imaging and high-speed production. Built on thin-film piezoelectric (TFP) technology, the CE4M delivers a native 300dpi resolution across a 53.7mm print width, driven by 636 nozzles arranged in a multi-row configuration. Its minimum droplet size of 5pL, combined with 8-level grayscale modulation, enables smooth tonal transitions and sharp edge definition capabilities that make it well-suited for applications ranging from UV flatbed printing and label production to decorative crafts and promotional merchandise.

What distinguishes the CE4M from many competing models is its balanced performance profile. Operating at a 28kHz firing frequency, the printhead achieves production speeds that significantly exceed entry-level alternatives while maintaining the dot placement accuracy required for detailed graphics and fine text. This combination of speed and precision has made it a popular choice for equipment builders targeting the mid-tier industrial segment, where buyers demand reliable output without the premium cost associated with ultra-high-end printheads. The CE4M's compatibility with UV-curable, solvent-based, and aqueous inks further broadens its applicability across diverse material substrates.

Durability is another area where the CE4M demonstrates its industrial pedigree. Under normal operating conditions with appropriate maintenance, the printhead typically achieves a service life of one to two years, reducing the frequency and cost of replacement compared to shorter-lived alternatives. Its corrosion-resistant nozzle plate and robust internal construction are engineered to withstand the demanding environments of continuous production, where downtime directly impacts profitability. The compact form factor measuring approximately 120mm × 80mm × 30mm and weighing around 150g also simplifies integration into multi-head arrays for wider-format systems.

From a system integration perspective, the CE4M benefits from broad compatibility with existing driver electronics and waveform profiles used across the industrial inkjet sector. Equipment manufacturers can leverage established reference designs to accelerate development cycles, while end users benefit from the availability of technical support and replacement components through a well-established supply chain. The printhead's 24VDC operating voltage and straightforward mechanical interface further reduce the engineering overhead associated with new platform development.
