Roland XR 640 Print Head Replacement

The operational longevity and color fidelity of wide format solvent printers depend heavily on the condition of their primary output components. When a print head reaches the end of its service life, executing a seamless replacement is critical to restoring production capacity and maintaining premium image quality. For operators managing large format equipment like the XR 640 series, understanding the precise mechanics of print head replacement transforms what could be an extended downtime event into a streamlined maintenance procedure.

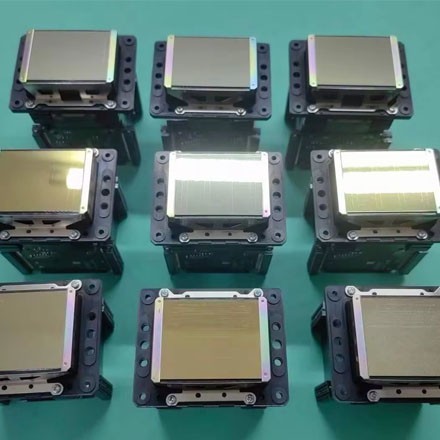

Roland XR 640 Print Head Replacement

Before initiating any hardware swap, it is essential to confirm that the print head is genuinely beyond recovery. Often, severe banding or missing nozzles can be resolved through intensive cleaning cycles or replacing secondary consumables such as wiper blades, cap tops, and dampers. However, if diagnostic tests indicate irreversible electrical failure or permanent physical damage to the nozzle plate, replacement becomes necessary. Operators should ensure they have the correct replacement unit, precision screwdrivers, lint free swabs, and recommended flushing solutions ready before opening the printer chassis. Proper preparation minimizes the time the internal carriage is exposed to ambient dust.

Safe Extraction and Installation Protocols

Replacing a print head requires meticulous attention to mechanical alignment and electrical safety. The process begins with powering down the system completely and moving the carriage to a secure manual position. After removing the protective covers and disconnecting the delicate ribbon cables and ink supply tubes, the old print head can be carefully unseated. During installation, the new component must be seated perfectly flush against the carriage manifold to prevent air leaks and ink starvation. Securing the mounting screws to the manufacturer’s specified torque ensures uniform pressure across the sealing surfaces. Reconnecting the data and power cables without bending the pins is equally vital to avoid short circuits upon startup.

System Calibration and Alignment Procedures

Physical installation is only the first half of the replacement process. Once the new print head is secured and the system is powered back on, comprehensive software calibration is mandatory. The printer’s firmware must recognize the new hardware and initialize the ink charging sequence. Following this, operators must run automated nozzle check patterns to verify that all channels are firing correctly. Subsequently, bidirectional alignment and step calibration routines must be executed to eliminate any ghosting or vertical banding. These adjustments synchronize the new print head’s micro nozzles with the existing carriage encoder strip, ensuring crisp dot placement at high speeds.

Preventative Maintenance for Extended Lifespan

A successful print head replacement provides an excellent opportunity to reinforce preventative maintenance habits. The lifespan of these precision components is directly tied to the cleanliness of the capping station and the consistency of daily maintenance routines. Operators should regularly inspect the vacuum levels of the waste ink pump and ensure the wiping mechanism glides smoothly across the nozzle plate without leaving residue. By maintaining optimal environmental conditions within the printer and adhering to strict shutdown protocols, facilities can maximize the return on investment for every new print head installed in their wide format production lines.
