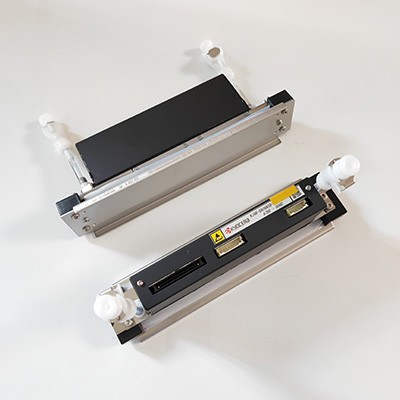

Kyocera KJ4B-QA Printhead: Aqueous Inkjet Workhorse

The Kyocera KJ4B-QA printhead has established itself as a cornerstone component in the aqueous inkjet printing ecosystem, powering applications that demand both high throughput and consistent image quality. Designed specifically for water-based inks including reactive dyes for textiles and pigment inks for commercial printing this printhead bridges the gap between speed and precision in a way that few industrial components can. Its widespread adoption across textile printing, book publishing, and label production speaks to a design philosophy that prioritizes reliability under continuous operation.

What distinguishes the KJ4B-QA from competing aqueous printheads is its combination of wide-format coverage and high nozzle density. With 2,656 nozzles distributed across a 108.25mm effective print width, the KJ4B-QA reduces the number of printheads required to achieve full-width coverage, simplifying mechanical design and lowering integration costs for equipment manufacturers. This wide format is particularly advantageous in single-pass printing systems, where minimizing the number of printhead modules directly translates to reduced complexity and improved reliability.

The printhead's grayscale capability further enhances its versatility. Supporting four variable droplet sizes 5, 7, 12, and 18 picoliters the KJ4B-QA can render smooth tonal transitions and fine detail simultaneously, making it suitable for applications ranging from photorealistic textile prints to crisp text in book production. Operating at a maximum drive frequency of 30kHz, it achieves linear speeds of up to 76.2 meters per minute at 600×600 dpi resolution, a performance envelope that satisfies the demands of high-volume production environments.

Durability is another hallmark of the KJ4B-QA design. The printhead employs a stainless steel laminated structure that resists corrosion from aqueous ink chemistries, while its integrated heater and thermistor maintain stable ink viscosity across varying ambient conditions. Recent iterations have improved sealing and hydrophobicity, extending operational life and reducing the frequency of maintenance interventions a critical consideration for print shops running 24/7 production schedules.
