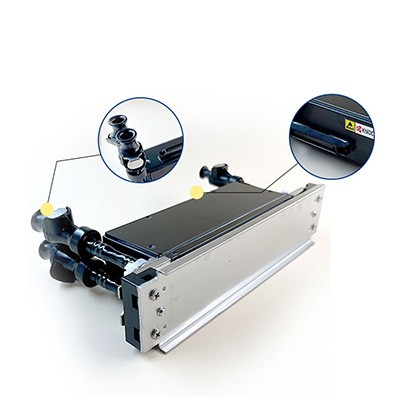

Kyocera KJ4A-0300: High-Speed UV Inkjet Printhead

The Kyocera KJ4A-0300 printhead occupies a distinct position in the industrial UV inkjet ecosystem, engineered specifically for applications where throughput and solid coverage take precedence over ultra-fine detail. As part of the KJ4A series optimized for UV-curable inks, the 0300 variant trades resolution for raw speed, operating at a 300dpi native resolution with a 30kHz drive frequency to achieve line speeds of up to 152.4 meters per minute. This performance profile makes it the go-to choice for high-volume tasks such as full-bleed background printing on packaging, wide-format signage bases, and industrial coating applications where consistent, dense ink deposition matters more than photorealistic rendering.

What sets the KJ4A-0300 apart from its higher-resolution siblings in the KJ4A family is its deliberate design philosophy: sacrifice pixel density for productivity. With 2,656 nozzles arranged across a 112.35mm effective print width, the printhead delivers a minimum droplet size of 4.0pL larger than the 1.5–3.0pL range found in fine-detail models like the KJ4B-1200 or KJ4A-RH. This larger droplet volume is not a limitation but a feature, enabling superior opacity and color saturation on dark or challenging substrates. For UV ink chemistries, which inherently carry higher viscosity than water-based alternatives, the 0300's flow path and piezoelectric actuator are tuned to ensure stable, high-volume ejection without satellite droplet formation or nozzle clogging.

The printhead's compatibility with UV-curable inks opens a broad range of substrate possibilities that water-based systems cannot match. From rigid PVC and acrylic sheets to flexible vinyl and corrugated cardboard, the KJ4A-0300 enables instant curing upon exposure to UV-LED light, eliminating drying time and allowing for immediate downstream processing. This characteristic is particularly valuable in short-run packaging and point-of-purchase display production, where turnaround time directly impacts profitability. The printhead's stainless steel laminated construction further ensures longevity in the chemically aggressive environment of UV ink systems, with operational lifespans routinely exceeding three to five years under normal production conditions.

Integration simplicity is another hallmark of the KJ4A-0300 design. Like all members of the KJ4 series, it adheres to a standardized 200mm width footprint with consistent mounting hole patterns and ink interface positions, allowing equipment manufacturers to swap between different KJ4 variants without redesigning the printer chassis. This platform approach reduces development time for OEMs and gives end users the flexibility to upgrade or reconfigure their systems as production needs evolve. The built-in heater and thermistor maintain ink viscosity within the optimal 6.0–7.0 mPa·s range, compensating for ambient temperature fluctuations that could otherwise degrade print consistency.
