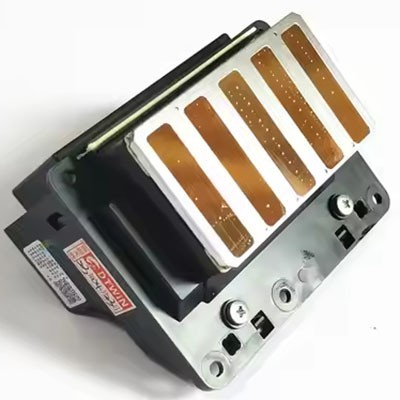

Epson Stylus Pro 9890 Print Head Peak Performance

At the core of the Epson Stylus Pro 9890 print head is the revolutionary Thin Film Piezo (TFP) technology. Unlike traditional piezoelectric elements that are mechanically carved, TFP technology utilizes a proprietary deposition process to create uniform piezoelectric films just one micron thick. This advanced manufacturing allows for a significantly higher nozzle density and highly consistent droplet ejection. Coupled with Variable-size Droplet Technology (VSDT), the print head can produce variable-sized ink droplets as small as 3.5 picoliters. This microscopic precision ensures that high-resolution details are rendered flawlessly while optimizing ink consumption and reducing overall print times.

Eight-Channel Architecture and Auto-Sharing Black Ink

The print head features a highly efficient eight-channel architecture designed to handle the complex demands of professional pigment ink systems. A standout engineering feature is the auto-sharing black ink channel. This intelligent system automatically switches between Photo Black and Matte Black inks depending on the media type, ensuring maximum dynamic range and optimal contrast. Furthermore, the print head simultaneously utilizes three levels of black ink (Black, Light Black, and Light Light Black) to significantly improve gray balance, eliminate color casts, and deliver exceptionally smooth tonal transitions in monochrome prints.

Advanced Meniscus Control and Nozzle Repelling Coatings

Maintaining perfect dot placement at high speeds requires overcoming the physical challenges of ink surface tension. The Epson Stylus Pro 9890 print head incorporates low-vibration meniscus control, which ensures highly accurate dot shaping and precise placement on the media. To combat one of the most common issues in inkjet printing nozzle clogging the print head is treated with an advanced ink-repelling coating. This specialized surface treatment dramatically reduces the adhesion of ink and paper dust around the nozzle plate, virtually eliminating clogs and reducing the frequency of required maintenance cycles.

Automated Verification and Precision Alignment

Reliability in high-volume commercial printing is driven by automated self-diagnostic capabilities. The print head is integrated with embedded sensors that perform automatic nozzle verification without consuming media. This system quickly identifies and addresses any missing nozzles before they can compromise a print job. Additionally, built-in sensors perform highly precise automatic print head alignment for all color channels in both single and bi-directional printing modes. This ensures that the maximum resolution of 2880 x 1440 dpi is consistently achieved, delivering incredibly sharp text, line art, and photographic transitions across every single print.
