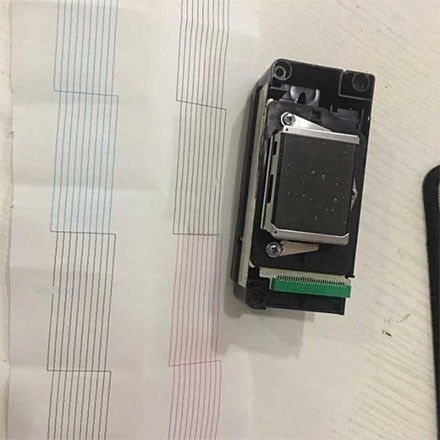

A Guide to the Mimaki CJV30 Printhead

In the competitive landscape of wide format printing, the Cut and Print model has long been a favorite for sign shops and sticker manufacturers. At the core of these machines lies a critical component that dictates print quality, speed, and reliability: the printhead. For owners of the popular CJV30 series, maintaining or upgrading the Mimaki CJV30 printhead is a top priority to ensure their hybrid machines continue to deliver professional grade results.

The Heart of the Hybrid Machine

The CJV30 series is renowned for its ability to print high quality graphics and then precisely contour cut them in a single workflow. This versatility relies heavily on the precision of the print engine. The Mimaki CJV30 printhead is engineered to handle a variety of ink chemistries, including solvent, eco solvent, and UV curable inks, making it a versatile choice for diverse applications ranging from vehicle wraps to outdoor signage.

Unlike generic printing heads, these units are calibrated to work in perfect synchronization with the machine's cutting plotter mechanics. This ensures that the registration marks used for contour cutting are printed with absolute clarity, allowing the optical sensors to track the cut path with micrometer precision.

Maintenance and Longevity

A printhead is a consumable item, but its lifespan is heavily influenced by maintenance habits. To extend the life of a Mimaki CJV30 printhead, operators must adhere to strict maintenance schedules. Regular head cleaning, proper capping station function, and the use of high quality cleaning fluids are essential to prevent nozzle clogging and ink buildup.

One common issue in solvent printing is the drying of ink within the nozzles during periods of inactivity. A proactive approach involves running daily test prints and ensuring the machine's auto flush features are active. For heads that have become stubbornly clogged, professional refurbishment services can often restore functionality, offering a cost effective alternative to purchasing a brand new unit.

Replacement and Compatibility

When the time comes for a replacement, navigating the market requires technical knowledge. The CJV30 series has evolved over the years, and printhead compatibility is not universal across all sub models. It is crucial to verify the specific model number and the generation of the print head (e.g., DX4, DX5, or specific piezoelectric variants) before making a procurement decision.

Furthermore, the installation of a new Mimaki CJV30 printhead is a delicate process that often requires precise voltage adjustments and alignment calibration. Many professionals recommend seeking technical support or utilizing authorized service channels to ensure the new head is integrated correctly, avoiding potential damage to the mainboard or the head itself.
