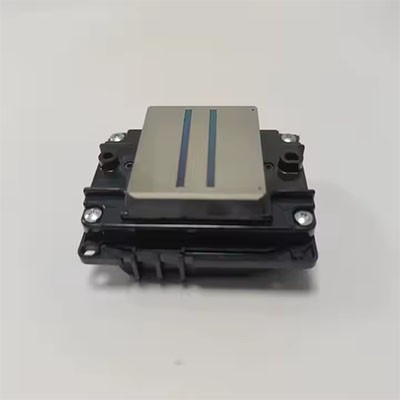

Epson I1600 Printhead Printing Guide & Applications

In the evolving landscape of industrial and commercial inkjet printing, the Epson I1600 printhead has emerged as a compelling option for businesses seeking high speed output without compromising on reliability. Designed for demanding environments, this printhead leverages advanced micro piezo technology to deliver consistent results across a range of substrates. But what exactly makes I1600 printhead printing stand out and how can operators maximize its potential?

Built for Speed and Efficiency

One of the defining features of the I1600 is its high nozzle density. With 1600 nozzles per inch across multiple channels, it enables significantly faster print speeds compared to older generation heads. This makes it particularly well suited for applications where throughput is critical such as packaging prototypes, retail displays, short-run labels, and industrial coding.

Unlike thermal printheads that rely on heat to eject droplets, the I1600 uses piezoelectric actuators, which generate mechanical pressure to push ink through the nozzles. This method not only reduces energy consumption but also allows compatibility with a broader spectrum of ink chemistries, including certain solvent based and pigment loaded formulations.

Ideal Use Cases

While not designed for ultra high resolution fine art reproduction, the I1600 excels in mid resolution industrial printing (typically 300–600 dpi) where speed, durability, and cost per square meter matter more than photographic detail. Common applications include:

Product labeling and barcoding

Corrugated box printing

Promotional signage

Functional printing (e.g., conductive traces or coatings in niche R&D settings)

Its robust construction also supports integration into automated production lines, where minimal maintenance and long operational cycles are essential.

Key Considerations for Optimal Performance

To get the most out of I1600 printhead printing, several best practices should be followed:

Ink Compatibility: Always verify that your ink’s viscosity, surface tension, and chemical composition align with the printhead’s specifications. Incompatible inks can cause nozzle clogging, corrosion, or delamination of internal components.

Environmental Control: Maintain stable temperature and humidity in the printing area. Rapid fluctuations can lead to condensation or ink drying at the nozzle plate both major causes of misfires.

Regular Maintenance Cycles: Implement automated cleaning routines, including cap seal storage during idle periods and periodic purging. Skipping these steps drastically shortens printhead life.

Proper Electrical Grounding: Static discharge is a silent killer of piezo printheads. Ensure the printer frame, media handling system, and operator workstation are properly grounded.

Firmware and Waveform Alignment: The I1600 relies on precise drive waveforms to control droplet formation. Using outdated or mismatched firmware can result in satellite droplets, banding, or inconsistent drop velocity.

Longevity vs. Cost of Ownership

Although the initial investment in an I1600 based system may be higher than entry level alternatives, its high productivity and lower ink waste often translate into a better total cost of ownership over time. A well maintained I1600 printhead can operate reliably for thousands of hours, especially when integrated into a system designed with proper filtration, degassing, and recirculation.

Final Thoughts

Epson I1600 printhead printing represents a strategic middle ground between legacy industrial heads and next generation high resolution arrays. It’s not about achieving the finest detail it’s about delivering consistent, fast, and economical output for real world commercial needs. For businesses scaling up production or transitioning from analog methods, understanding how to properly deploy and maintain this printhead can be a decisive factor in operational success.

By focusing on compatibility, environment, and proactive care, users can unlock the full potential of I1600 technology turning speed into profit without sacrificing reliability.
