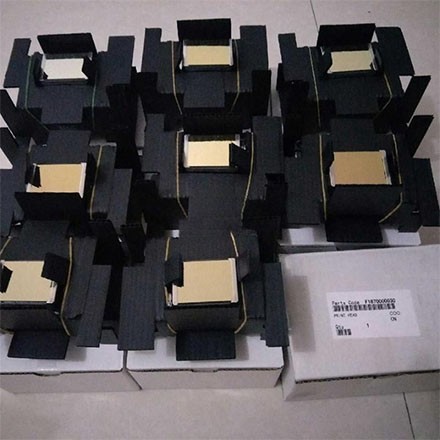

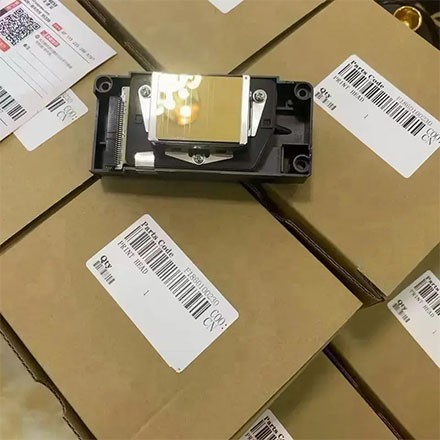

Epson DX7 Printhead Specs & Performance Guide

The Epson DX7 printhead remains a cornerstone in the wide format and industrial inkjet printing industry, valued for its reliability, consistent output quality, and versatile compatibility with multiple ink types. Designed using advanced MicroPiezo® technology, this printhead delivers precise droplet control making it ideal for applications ranging from signage and décor to textiles and packaging.

Key technical specifications of the Epson DX7 include:

Nozzle Configuration: 8 independent channels, each with 180 nozzles, totaling 1,440 nozzles per printhead.

Droplet Size Range: Variable dot technology supports droplet sizes between 3.5 picoliters (pl) and 12 pl, enabling both high resolution detail and fast fill coverage depending on print mode.

Resolution Capability: Capable of producing print resolutions up to 1440 dpi, ensuring sharp text, smooth gradients, and fine image reproduction.

Ink Compatibility: Engineered primarily for eco solvent and mild solvent inks, though also widely adapted for sublimation, UV curable, and water based formulations in third party systems.

Physical Dimensions: Compact one inch wide design facilitates integration into multi printhead arrays for increased productivity without sacrificing print uniformity.

Operating Frequency: Supports firing frequencies up to 24 kHz per channel, balancing speed and longevity under continuous industrial use.

One of the standout features of the DX7 is its ink repellent coating on the nozzle plate, which minimizes satellite droplets and reduces clogging critical for maintaining uptime in demanding production environments. Additionally, its piezoelectric actuation mechanism ensures consistent droplet velocity and placement across varying environmental conditions, unlike thermal printheads that rely on heat-induced bubble formation.

The printhead’s robust construction and mature ecosystem of compatible inks, dampers, and electronics have made it a preferred choice for OEMs and integrators seeking a balance between performance, cost efficiency, and serviceability. While newer printhead models offer higher speeds or smaller droplets, the DX7 continues to hold strong in markets where proven reliability and broad material support outweigh the need for cutting edge specs.

For businesses investing in digital printing systems, understanding the Epson DX7 printhead specifications helps in selecting the right platform for quality driven, medium to high volume output especially where color accuracy, media flexibility, and operational stability are non negotiable.
