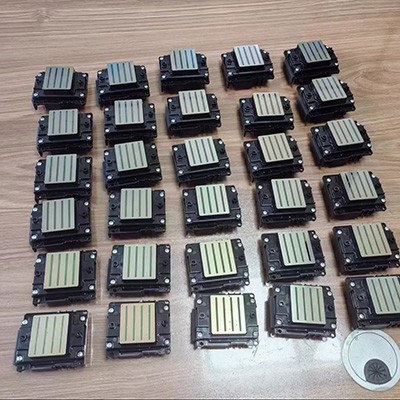

Epson 4720 Printhead Specifications

In the competitive landscape of industrial digital printing, the choice of a printhead dictates the ultimate ceiling of a machine’s performance, quality, and operational cost. The Epson 4720 printhead (often referred to in the industry as the EPS 3200) has rapidly emerged as a high-performance workhorse for wide-format, textile, and sublimation printing applications. Understanding its detailed technical specifications is essential for equipment manufacturers and print service providers aiming to maximize throughput without compromising image fidelity.

High-Density Nozzle Configuration and Print Width

At the core of the Epson 4720’s architecture is its impressive nozzle density. The printhead features a total of 3200 nozzles, arranged across 8 channels with 400 nozzles per channel. This high-density configuration allows for significant throughput gains, enabling digital inkjet machines to achieve high-speed 3PASS printing, with single-head machines capable of reaching output speeds of up to 30 square meters per hour. Furthermore, the printhead boasts an effective print width of approximately 33.8 mm (1.3 inches). This is at least 30% wider than previous fifth and seventh-generation heads, providing a broader coverage area that drastically reduces the number of passes required and enhances overall production efficiency.

Precision Droplet Technology and Resolution

The 4720 printhead leverages advanced piezoelectric MicroTFP (Thin Film Piezo) technology to deliver exceptional print quality. It supports variable droplet technology, capable of ejecting ink droplets as small as 3.5 picoliters (with some configurations citing 3.8pl). This precision allows for smooth gradients, sharp text, and photo-realistic graphics. In terms of resolution, the printhead achieves up to 600 × 1200 dpi, striking an optimal balance between high-definition output and rapid industrial production speeds.

Robust Ink Compatibility and Durability

A defining characteristic of the Epson 4720 is its remarkable versatility and corrosion-resistant design. Unlike specialized heads limited to a single ink chemistry, the 4720 is engineered to handle a diverse array of formulations, including water-based, pigment, UV-curable, eco-solvent, dye-sublimation, and oil-based inks. This multi-purpose capability makes it an ideal solution for hybrid printing environments, allowing businesses to pivot between textile, advertising, UV flatbed, and packaging applications with minimal hardware changes.

Advanced Operational Frequency

To support high-volume manufacturing demands, the Epson 4720 operates at a high firing frequency of up to 43.2 kHz. This rapid actuation ensures consistent ink flow and minimizes the risk of clogging, even during continuous, uninterrupted operation. Combined with its stable performance and scalable multi-head configurations, the Epson 4720 provides a cost-effective, high-reliability foundation for modern digital printing ecosystems.
