DX5 Printhead Green Connector: Signal & Stability

In the intricate ecosystem of wide format digital printing, the focus often rests heavily on the piezoelectric elements and nozzle plates of the printhead. However, a frequently overlooked yet pivotal component determines the longevity and signal fidelity of the entire printing unit: the interface cable assembly, specifically recognized by the industry standard DX5 Printhead Green Connector. This distinct physical feature is not merely an aesthetic choice; it serves as a crucial identifier for compatibility, signal shielding, and maintenance protocols in high-precision printing environments.

Visual Identification and Compatibility Assurance

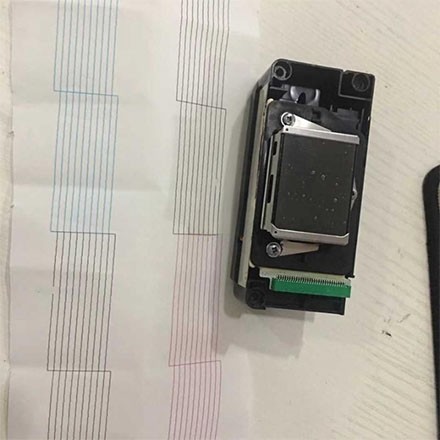

The "Green Connector" refers to the specific color coding of the Flexible Flat Cable (FFC) or Flexible Printed Circuit (FPC) terminal that interfaces directly with the DX5 printhead's input pins. In a workshop environment where multiple generations of printheads (such as the DX4, DX7, or XP600) might be present, this green hue acts as an immediate visual safeguard against mismatching. The pinout definition and voltage requirements of the DX5 architecture differ significantly from its predecessors. Using a cable with the standard green connector ensures that the 42 pin configuration aligns perfectly with the printhead’s logic board, preventing catastrophic short circuits that could occur if a mismatched cable were forced into the socket. This color coded standardization streamlines the replacement process, allowing technicians to verify compatibility at a glance before powering up the system.

Signal Shielding and Data Transmission Stability

Beyond identification, the construction of the assembly featuring the green connector is engineered for electromagnetic compatibility. The DX5 printhead operates at high firing frequencies, requiring the transmission of complex data signals that control thousands of nozzles simultaneously. The green connector typically caps a shielded cable assembly designed to resist electromagnetic interference (EMI) generated by the printer’s mainboard, stepper motors, and power supplies. The shielding layer, grounded through the connector interface, prevents signal crosstalk and data corruption. This integrity is vital for maintaining precise droplet placement; without it, printers may exhibit symptoms like missing nozzles, vertical banding, or erratic firing sequences, which are often misdiagnosed as printhead failures when the root cause is actually a compromised connection.

Mitigating Wear and Facilitating Maintenance

The interface between the cable and the printhead is a mechanical stress point subject to vibration and thermal cycling during operation. The green connector is designed with a reinforced locking mechanism that secures the cable firmly to the printhead body. This design prevents micro movements that could wear down the delicate gold-plated contacts on the printhead’s circuit board. For maintenance professionals, the robust nature of this connector allows for safer disconnection and reconnection during routine cleaning or head swaps. It reduces the risk of bending pins or tearing the flexible cable traces, which are common issues with lower quality, unshielded alternatives. By preserving the physical integrity of the connection point, the green connector assembly extends the operational lifespan of the expensive printhead component.
